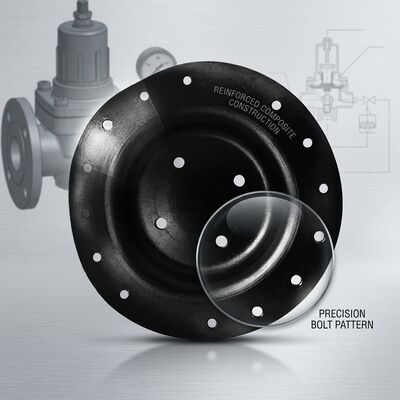

Replacement Diaphragm Rubber Diaphragm Seals AODD Series FKM Material Durable and Sealing Solution for Industrial Applications

Product Description:

The Rubber Diaphragm Seals are essential components designed to provide reliable and efficient sealing solutions in a wide range of industrial applications. Constructed primarily from high-quality elastomeric materials such as FKM and other specialized compounds, these seals offer exceptional durability, chemical resistance, and flexibility. The use of premium materials ensures that the seals maintain their integrity and performance even under challenging environmental conditions, making them ideal for industries where dependable sealing is critical.

One of the standout features of these Rubber Diaphragm Seals is their customized model options. Recognizing that every application has unique requirements, these seals can be tailored to precise specifications to perfectly fit diverse equipment and systems. This customization capability guarantees optimal sealing performance, minimizing the risk of leaks and enhancing overall system reliability.

Flexibility is a key attribute of the Rubber Diaphragm Seals. Designed to be highly flexible, they effectively accommodate movement and vibration within the machinery or piping systems where they are installed. This flexibility not only protects the seal from premature wear and tear but also ensures that the seal maintains a tight, leak-proof barrier even when subjected to dynamic operating conditions. This makes them particularly suitable for applications involving fluctuating pressures and temperatures.

These seals function as diaphragm seals, a specialized seal type that isolates and protects sensitive instrumentation from process fluids while transmitting pressure accurately. The diaphragm design enables the seal to flex in response to pressure changes without compromising the seal’s integrity. This feature is crucial in maintaining the accuracy and longevity of pressure measurement devices, preventing contamination, and reducing maintenance needs.

Maintenance requirements for the Rubber Diaphragm Seals are notably low. Thanks to their robust construction and material resilience, these seals require minimal upkeep, reducing downtime and operational costs. Their longevity and dependable sealing performance translate to fewer replacements and less frequent servicing, which is a significant advantage in industrial environments where continuous operation is vital.

In addition to their primary sealing function, these Rubber Diaphragm Seals incorporate rubber gasket elements that enhance their sealing capabilities. Rubber gaskets are known for their excellent elasticity and compression set resistance, which contribute to the overall effectiveness of the seal in preventing leaks. The integration of rubber gasket components ensures a tight fit and reliable sealing interface between the diaphragm seal and the equipment surfaces.

Elastomeric seals, including rubber gaskets, play a crucial role in the design of these diaphragm seals. Elastomers provide a combination of flexibility, chemical resistance, and mechanical strength that is unmatched by many other materials. This makes the Rubber Diaphragm Seals suitable for a variety of demanding applications, including those involving aggressive chemicals, extreme temperatures, and mechanical stress.

In summary, Rubber Diaphragm Seals are versatile, highly effective sealing solutions engineered to meet the rigorous demands of modern industrial processes. Their low maintenance requirements, customizable design, and flexible nature make them an ideal choice for protecting sensitive equipment and ensuring leak-free operation. By incorporating high-quality materials like FKM and utilizing elastomeric seals and rubber gasket components, these diaphragm seals deliver outstanding performance, longevity, and reliability across numerous applications.

Features:

• Product Name: Rubber Diaphragm Seals
• Series: AODD
• Diaphragm Type: Replacement Diaphragm
• Material: Rubber
• Maintenance: Low
• Model: Customized
• Features elastomeric seals for enhanced flexibility and durability
• Includes a high-quality rubber gasket to ensure a secure and leak-proof fit
• Designed with elastomeric seals to provide reliable performance in various applications

Technical Parameters:

Applications:

The HONGUM Rubber Diaphragm Seals, part of the AODD series, are engineered to provide exceptional performance in a variety of industrial and commercial applications. These diaphragm seals are designed as replacement diaphragms, offering a reliable solution for maintaining the integrity of diaphragm barriers and ensuring leak-proof operation. Typically available in black, HONGUM also offers custom color options to meet specific industry requirements or to help with easy identification during maintenance.

One of the standout features of the HONGUM Rubber Diaphragm Seals is their remarkable flexibility. This flexibility allows the seals to accommodate movement and vibration within the system, preventing wear and tear that could compromise the diaphragm barrier. This makes them ideal for use in dynamic environments where equipment is subject to constant motion or pressure fluctuations. The elastomeric seals used in these diaphragms provide excellent resilience and durability, ensuring long-lasting performance even under demanding conditions.

With a tight manufacturing tolerance of ±0.02mm, HONGUM ensures precision fitting of the rubber gasket components, which is crucial for maintaining a secure seal and preventing leaks. This high level of accuracy in production guarantees compatibility with a wide range of pumps and equipment, facilitating easy replacement and reducing downtime.

The application occasions for these rubber diaphragm seals are broad and varied. They are extensively used in air-operated double diaphragm (AODD) pumps, chemical processing plants, water treatment facilities, food and beverage production, pharmaceutical manufacturing, and other sectors that require reliable sealing solutions. The elastomeric seals’ chemical resistance and flexibility make them suitable for handling aggressive fluids, abrasive slurries, and corrosive substances, protecting the diaphragm barrier from damage.

In scenarios where equipment experiences frequent cycling or vibration, such as in pneumatic systems or fluid transfer applications, the HONGUM Rubber Diaphragm Seals excel by maintaining their integrity and performance. Their robust construction and precise tolerance ensure that the rubber gasket remains securely in place, preventing leaks and prolonging the life of the diaphragm assembly.

Overall, the HONGUM Rubber Diaphragm Seals are a dependable choice for industries seeking durable, flexible, and precisely engineered elastomeric seals. Their adaptability to various operational conditions and custom color availability further enhance their utility across multiple application occasions and scenarios.

Customization:

At HONGUM, our Rubber Diaphragm Seals are fully customizable to meet your specific requirements. Available typically in black, we also offer custom colors to perfectly match your application needs. Our customized model designs ensure flexibility, allowing the seals to accommodate movement and vibration effectively. Manufactured using high-quality elastomeric materials, these rubber gaskets provide excellent sealing performance with low maintenance requirements. Whether you need tailored rubber gasket solutions or specialized elastomeric seals, HONGUM delivers reliable and durable products designed for optimal functionality.

Support and Services:

Our Rubber Diaphragm Seals are designed to provide reliable and durable performance in various industrial applications. To ensure optimal functionality and longevity of your diaphragm seals, we offer comprehensive technical support and services.

Our technical support team is available to assist you with installation guidance, troubleshooting, and maintenance tips. We provide detailed product documentation, including installation manuals, material specifications, and compatibility information to help you integrate the diaphragm seals seamlessly into your systems.

In addition, we offer custom design services to tailor the rubber diaphragm seals to meet your specific operational requirements. Our engineers work closely with you to understand your needs and recommend the best solutions for pressure measurement, isolation, and protection applications.

For maintenance, we advise regular inspection of the diaphragm for signs of wear, deformation, or chemical damage. Proper cleaning and handling instructions are provided to extend the service life of the seals.

Should you encounter any performance issues or require replacement parts, our support team is ready to provide prompt assistance to minimize downtime and ensure continuous operation.

Trust our expertise and commitment to quality to support your use of Rubber Diaphragm Seals effectively and efficiently.

Packing and Shipping:

Each Rubber Diaphragm Seal is carefully packaged to ensure maximum protection during transit. The seals are first wrapped in protective material to prevent any damage or contamination. They are then placed in sturdy, appropriately sized boxes designed to withstand shipping stresses.

For bulk orders, the products are securely packed in larger cartons with adequate cushioning to avoid movement and impact. All packaging materials used are environmentally friendly and comply with industry standards.

Shipping is handled through reliable carriers with tracking options available to ensure timely and safe delivery. We offer various shipping methods to accommodate customer needs, including express and standard delivery services.

Before dispatch, each order undergoes a thorough quality check to confirm that the Rubber Diaphragm Seals meet all specifications and are free from defects. Customers receive detailed shipping information and support throughout the delivery process.

FAQ:

Q1: What materials are used in HONGUM Rubber Diaphragm Seals?

A1: HONGUM Rubber Diaphragm Seals are made from high-quality, durable rubber compounds designed to provide excellent flexibility and resistance to various chemicals and temperatures.

Q2: What applications are HONGUM Rubber Diaphragm Seals suitable for?

A2: These seals are ideal for use in pressure gauges, valves, pumps, and other industrial equipment where a reliable sealing solution is required to prevent leaks and protect sensitive components.

Q3: Can HONGUM Rubber Diaphragm Seals withstand high temperatures?

A3: Yes, HONGUM Rubber Diaphragm Seals are designed to perform well within a wide temperature range, making them suitable for various industrial environments.

Q4: Are HONGUM Rubber Diaphragm Seals compatible with different fluids?

A4: Yes, these seals offer excellent chemical resistance and are compatible with many fluids, including oils, water, and certain aggressive chemicals, depending on the specific rubber compound used.

Q5: How do I choose the right size of HONGUM Rubber Diaphragm Seal for my equipment?

A5: To select the correct size, refer to your equipment specifications and match the diaphragm seal dimensions accordingly. HONGUM also provides technical support to help you identify the best fit for your application.
